[VA-2]
Inter-Machine Analysis Display


Image and descriptive information courtesy of Tom Ellis

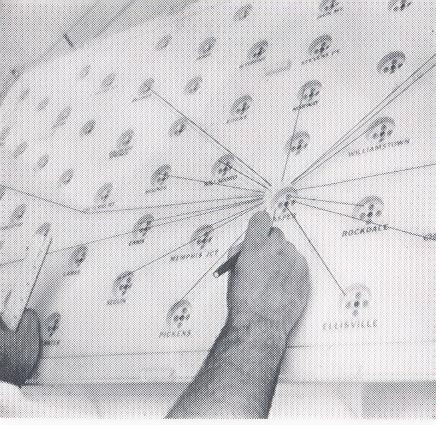

This photo shows the Polygrid Trunking connectivity to the Jasper, Alabama 4-wire #1 ESS (Electronic Switching System). It looks like there are eighteen AUTOVON switchers having a direct trunk group to Jasper. This would include those in the inner-grid and outer-grid trunking. In the event of traffic overload or a switch impairment, a plastic overlay was placed on the IMAD to show the routing and trunking associated for that particular switching machine.
